Create a Service Provider

  1. Login to DualShield Administration Console
  2. Select “SSO | Service Providers”

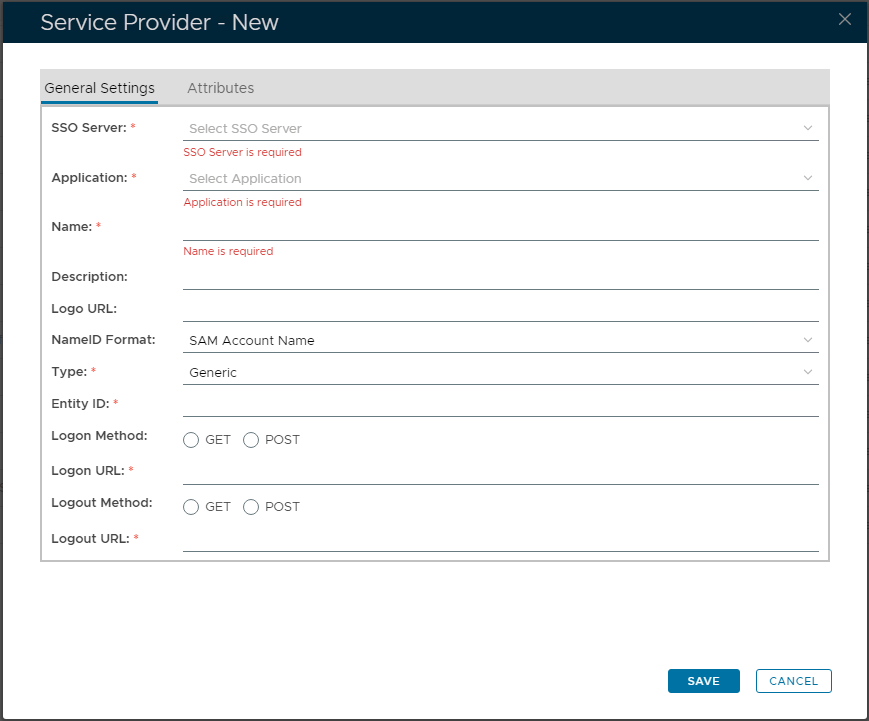

  3. Click the “+ CREATE” button

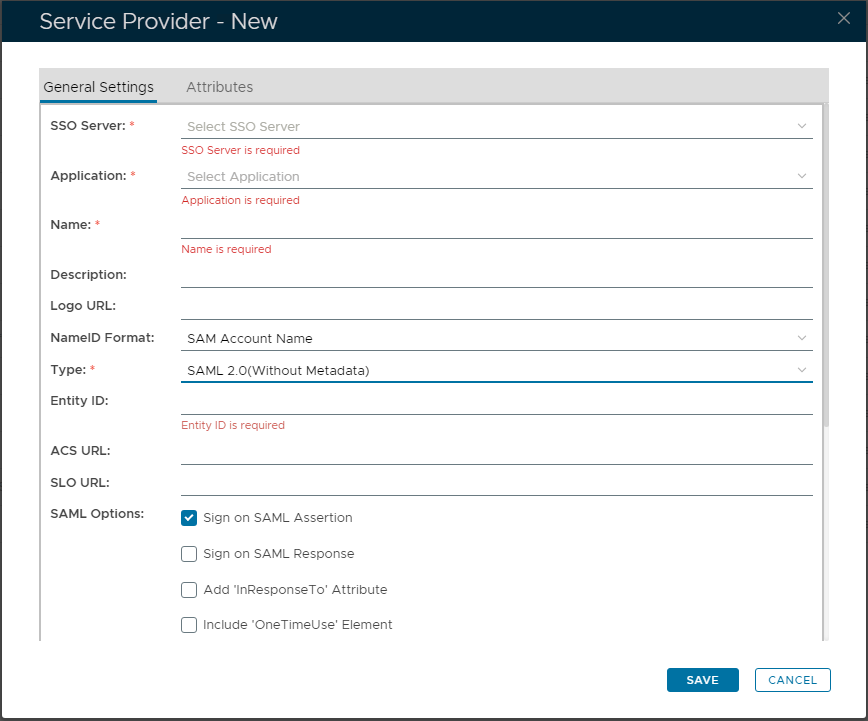

  4. In "Type", select "SAML 2.0"



  5. Select "SSO Server" and "Application"
  6. Enter "Name" and "Description" (optional)
  7. In "Entity ID" enter "box.net"
  8. In "ACS Url" enter "https://sso.services.box.net/sp/ACS.saml2"

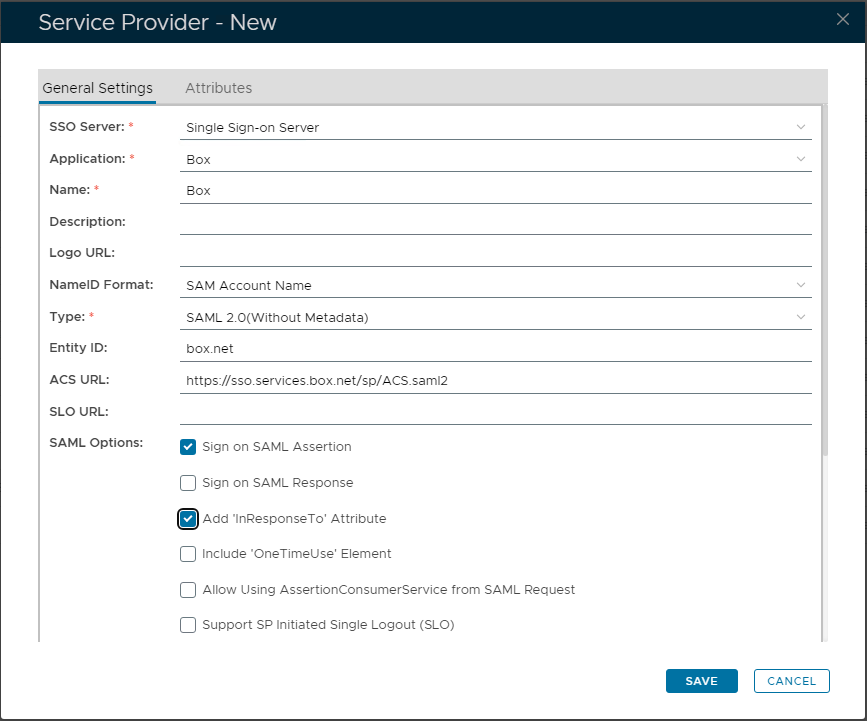

  9. In "SAML Options", select tickbox "Sign on SAML Assertion"

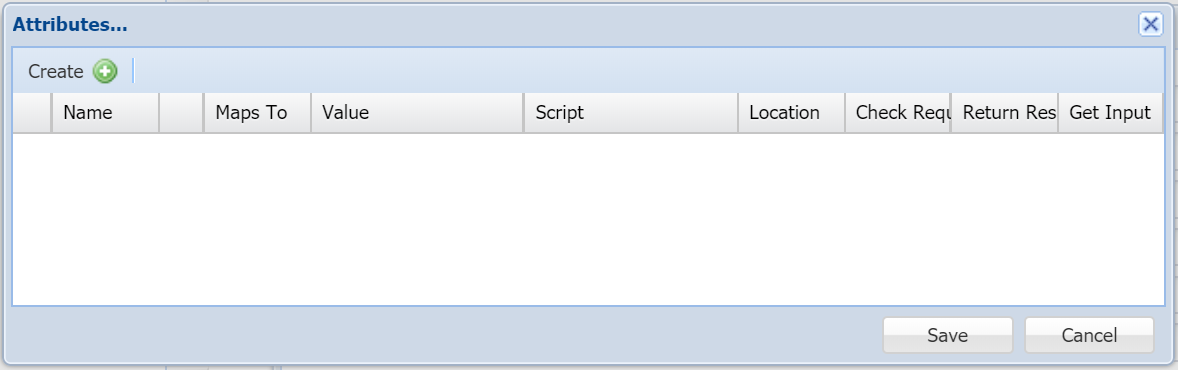

  10. In "Attributes", click the "+ CREATE" button

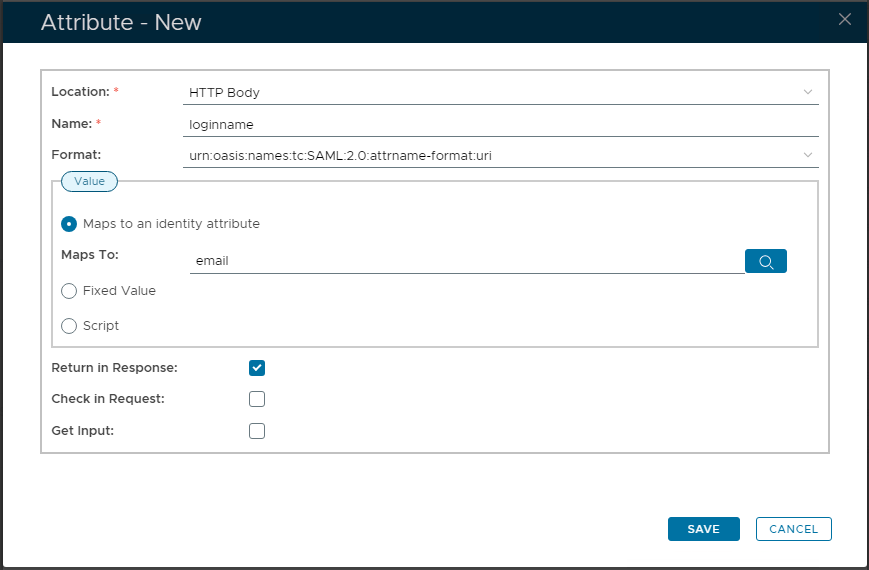

  11. Click the "+CREATE" button on the toolbar



  12. In "Location", select "HTTP Body"
  13. In "Name", enter "loginname"

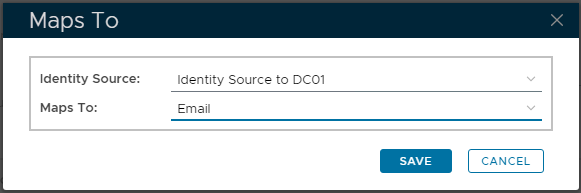

  14. In "Maps to an identity attribute", click the search icon



  15. Save the attribute

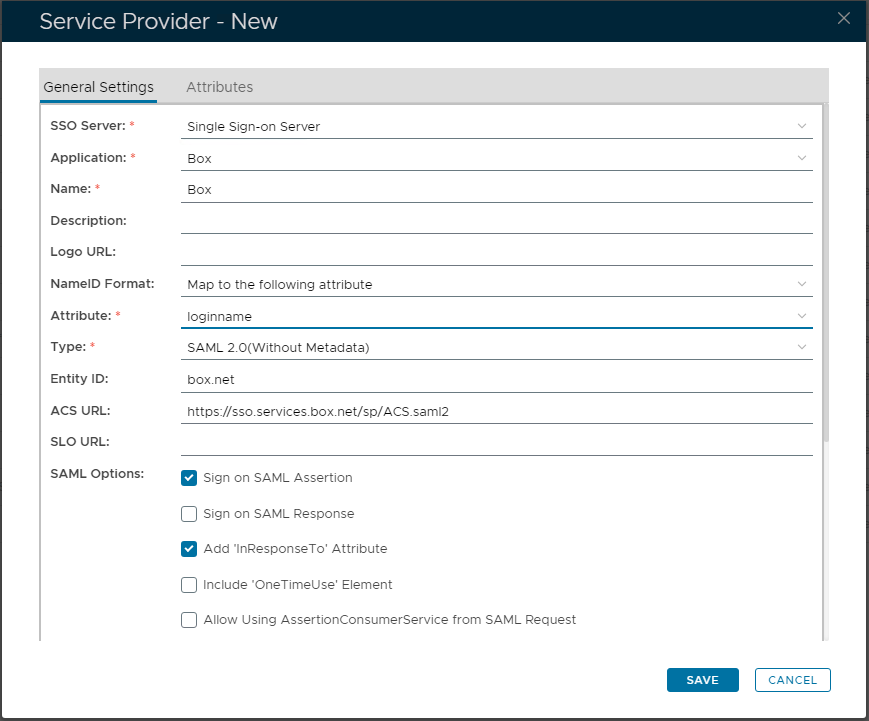

  16. In "NameID Format", select "Map to the following attribute"
  17. In "Attribute" select the newly created attribute, i.e. "email"
  18. Click "SAVE"
