Create a Web Logon Procedure

  1. Login to the DualShield Administration Console
  2. In the main menu, navigate to “Authentication | Logon Procedures”
  3. Click the “+ CREATE” button on the toolbar

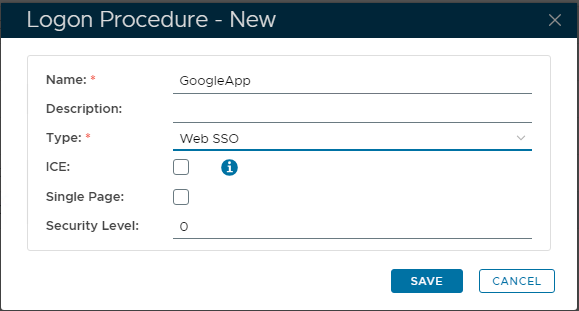

  4. Enter a suitable “Name”, then select 'Type' as “Web SSO”:



  5. Click the "SAVE" button
  6. Click the context "..." icon of the newly create Logon Procedure, then select “Logon Steps”
  7. Select "+ ADD" in the toolbar on the right
  8. Select the authentication method, e.g. "One-Time Password"
  9. Then click "SAVE" to apply

Create a Web Application

  1. In the main menu, select “Authentication | Application”
  2. Click the “+ CREATE” button on the toolbar
  3. Enter an appropriate “Name”
  4. Select the internal “Realm” at the drop-down
  5. Select the newly created Logon Procedure, from the previous step.



  6. Click "SAVE" to create the new Application
  7. Click the context "..." menu of the newly created Application, then select "Agents"

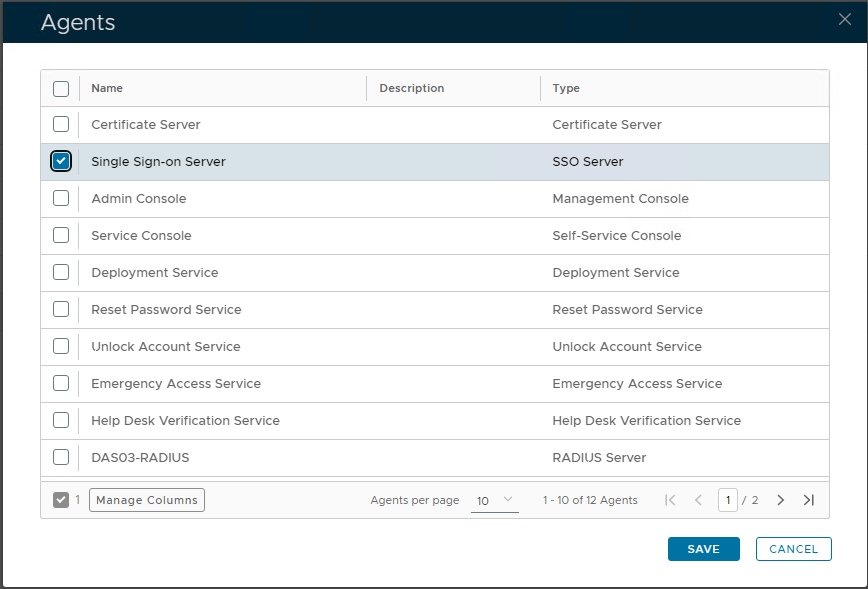

  8. Select the Agent named "Single Sign-on Server  | SSO Server"
  9. Click "SAVE" to confirm.

Register a GoogleApps Service Provider

  1. In the main menu, navigate to "SSO | Service Providers"
  2. Click the "+ CREATE" button, and select "Google Apps"
  3. Select  "SSO Server", enter "Name" , and "Google Apps Domain"
  4. Click "Save"



  5. Click the context "..." menu of "DeepnetID" in the Service Provider list, select Edit
    Set "NameID Format" to "User Principle Name"



Download the DualShield IdP Certificate

  1. In the main menu, navigate to "SSO | SSO Servers”

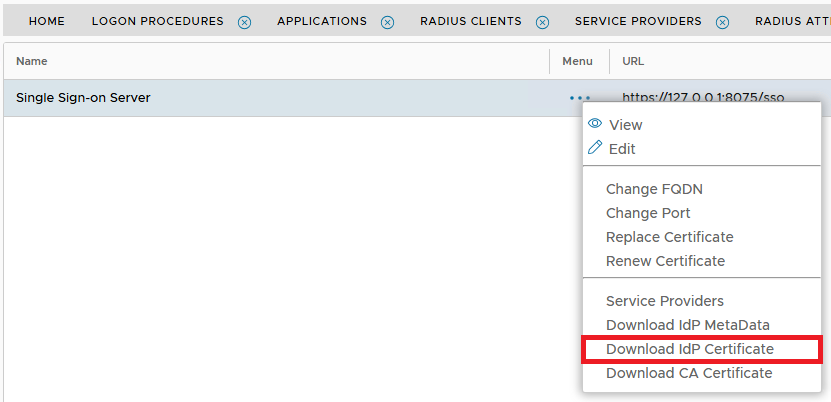

  2. Click “Download IdP Certificate”, to save the CER file to the local machine:
